Removal And Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

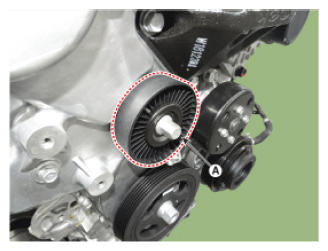

- Remove the idler (A).
Tightening Torque:
42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
NOTE:- Check the idler for excessive oil leakage, abnormal rotation or vibration. Replace if necessary.
- Install in the reverse order of removal.
