Removal And Installation

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Crankshaft damper pulley.

    (Refer to Timing System - "DAMPER PULLEY ")

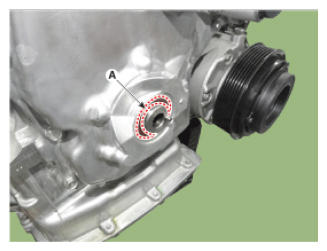

  2. Remove the front oil seal (A).
    G12593067Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the front oil seal.
    NOTE:

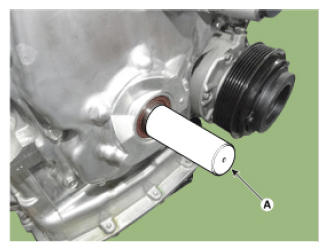

    • Using the SST (09455-21200) (A), reassemble the front oil seal.
      G12593068Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the front oil seal.
