Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.

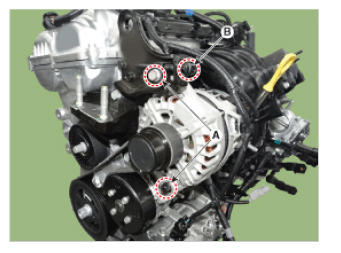

  2. Loosen the alternator tension mounting bolts (A).
  3. Loosen the adjusting bolt (B) clockwise in loose tension.
    G12593041Courtesy of HYUNDAI MOTOR AMERICA

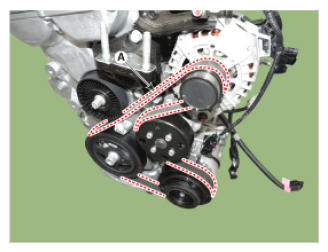

  4. Remove the drive belt (A).
    G12593042Courtesy of HYUNDAI MOTOR AMERICA
