Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

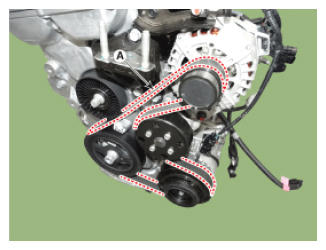

- Install the drive belt (A).

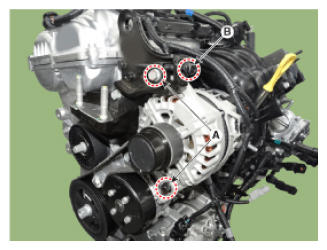

- Adjust tension by tightening the alternator tension adjust bolt (B).
- Install the mounting bolts (A).
Tightening Torque
12 mm bolt:
24.3 - 26.9 N.m (2.48 - 2.74 kgf.m, 17.9 - 19.8 Ib-ft) [Part No: 11403-08407B]
12 mm bolt:
26.9 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.8 - 23.9 Ib-ft) [Part No: 11405-08406K]
14 mm (0.55 in) bolt:
29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib-ft)
