Without A/C

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G12593049Courtesy of HYUNDAI MOTOR AMERICA

If Adjustment Is Necessary:

  1. Loosen the mounting bolts (A).
  2. Tighten the adjusting bolt (B) clockwise in loose tension; loosen the bolt counterclockwise in high tension.

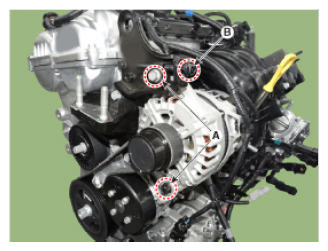

    G12593050Courtesy of HYUNDAI MOTOR AMERICA
  3. Recheck tension of the belt.
  4. After adjusting tension, tighten the through bolts.

    Tightening Torque

    12 mm bolt:

    24.3 - 26.9 N.m (2.48 - 2.74 kgf.m, 17.9 - 19.8 Ib-ft)

    [Part No: 11403-08407B]

    12 mm bolt:

    26.9 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.8 - 23.9 Ib-ft)

    [Part No: 11405-08406K]

    14 mm (0.55 in) bolt:

    29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib-ft)
