Removal And Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")

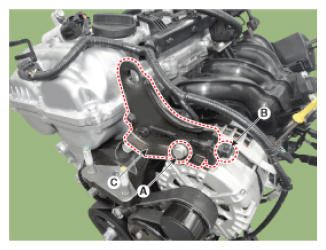

- Remove the alternator bracket (belt tensioner) (C).
Tightening Torque
[Part No: 11403-08407B]
24.5 - 26.9 N.m (2.48 - 2.74 kgf.m, 18.1 - 19.8 Ib-ft)
[Part No: 11405-08406K]
26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 Ib-ft)
- Install in the reverse order of removal.
