Door Position Adjustment
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
Information

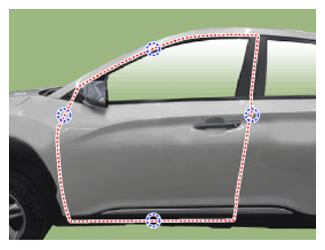

- After installing the door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.
- Check that the door and body edges are parallel.
- Place the vehicle on a level surface before adjusting the doors.

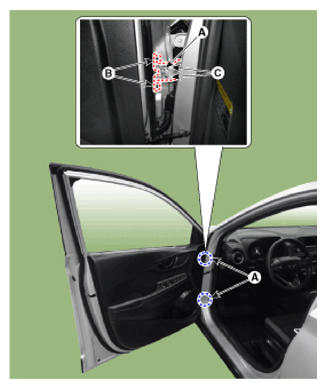

- Adjust the hinges (A):
- Loosen the door mounting bolts slightly, and move the door in or out until it flush with the body.
- Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary.
- Place a shop towel on the jack to prevent damage to the door when adjusting the door.
Tightening torque
(B): 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)
(C): 23.5 - 31.4 N.m (2.4 - 3.2 kgf.m, 17.4 - 23.1 lb-ft)
- Grease the pivot portions of the hinges indicated.
- Check for water leaks.
