Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

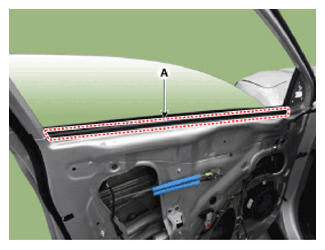

Remove the front door belt inside weatherstrip (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the front door full handle mounting support (A).

Courtesy of HYUNDAI MOTOR AMERICA

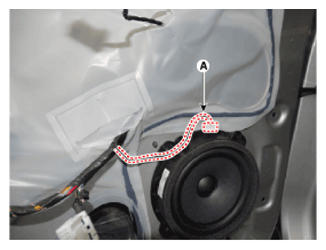

Disconnect the front door speaker connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

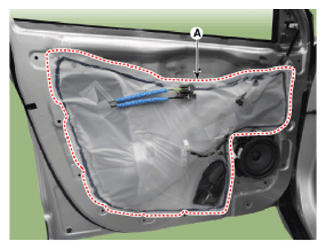

Remove the front door trim seal (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information
- Replace any damaged door trim seal.
By operating the power window switch, pull down until the glass mounting bolt on plug hole is visible.
CAUTION:
- Be careful not to damage the glass surface.
Loosen the mounting bolt and then pull out the front door window glass (A) by tilting it sideways.
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Roll the glass up and down to see if it moves freely.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Check the glass run channel for damage and replace the damaged channel.
