Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

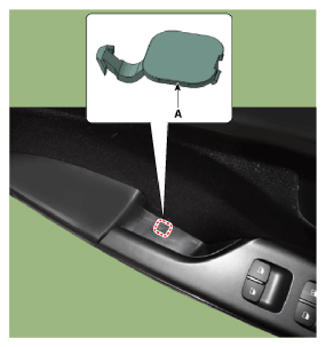

Using a flat-tip or remover, remove the front door pull handle mounting cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

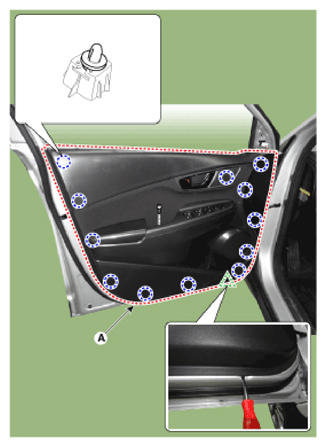

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.

Courtesy of HYUNDAI MOTOR AMERICA

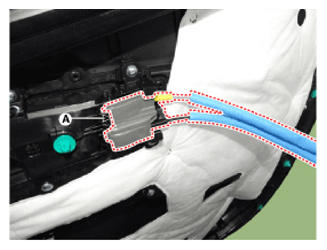

Remove the front door inside handle cage (A).

Courtesy of HYUNDAI MOTOR AMERICA

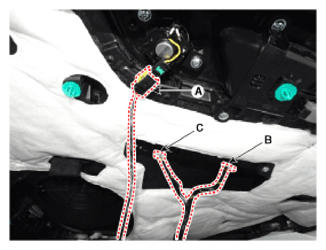

Disconnect the front door twitter speaker connector (A), and window switch connector (B), mirror switch connector (C).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
- Make sure the glass is operated properly.
