Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

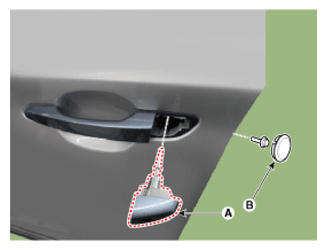

  1. Remove the plug hole (B).
  2. After loosening the mounting bolt, remove the front door outside handle cover (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G12602955Courtesy of HYUNDAI MOTOR AMERICA

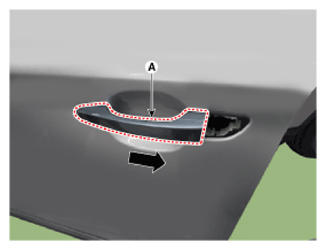

  3. Remove the front door outside handle (A) by sliding it forward.
    G12602956Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Make sure the door locks/unlocks and opens/closes properly.

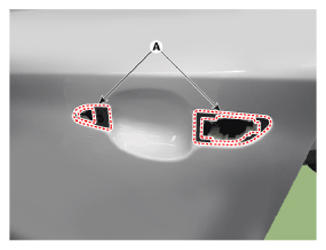

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
    G12602957Courtesy of HYUNDAI MOTOR AMERICA
