Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down the front door window glass to the lowest level by pressing the power window glass switch.

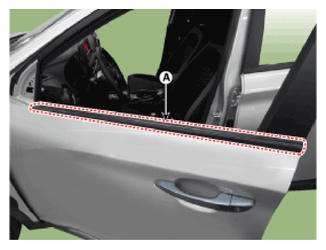

  2. Using a screwdriver or remover, remove the front door belt outside weatherstrip (A).
    G12602965Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
