Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

Information

When Removing With A Flat-Tip Screwdriver Or Remover, Wrap Protective Tape Around The Tools To Prevent Damage To Components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

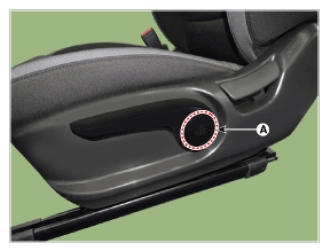

Using a screwdriver or remover, remove the front seat height knob cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

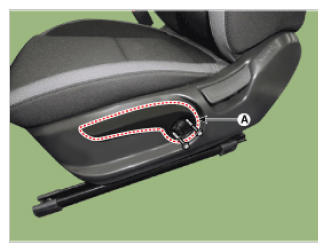

After loosening the mounting screws, remove the front seat height knob (A).

Courtesy of HYUNDAI MOTOR AMERICA

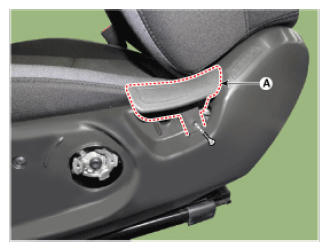

Using a screwdriver or remover, remove the front seat recliner lever (A).

Courtesy of HYUNDAI MOTOR AMERICA

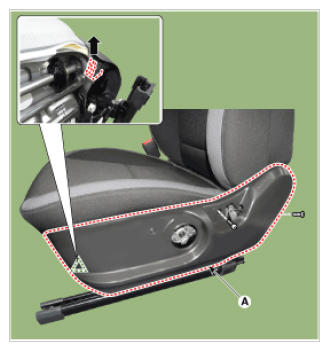

Remove the front seat outer shield cover (A) by pulling forward in the direction of the arrow using screw driver or remover.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
