Repair Procedures: Inspection
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF.
- Disconnect the auto defogging connector.

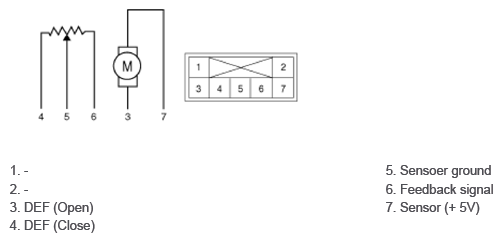

- Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4.
Verify that the auto defogging actuator operates to the close position when connected in reverse.
- Connect the auto defogging actuator connector.
- Turn the ignition switch ON.
- Check the voltage between terminals 6 and 5.NOTE:
- It will feedback the current position of the actuator to controls.
Specification
VOLTAGE SPECIFICATIONDoor Position Voltage (V) Error Detecting Vent 0.5±0.15 Low voltage: 0.1V or less Defrost 4.5±0.15 High voltage: 3.8V or more - If the measured voltage is not within specification, check the operation by replacing the existing auto defogging actuator with a new genuine part. After that, determine whether replacement of the auto defogging actuator is required or not.
