CLU Variant Coding
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

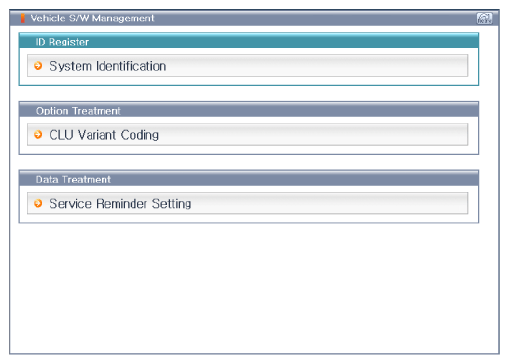

- Select model and "BCM".

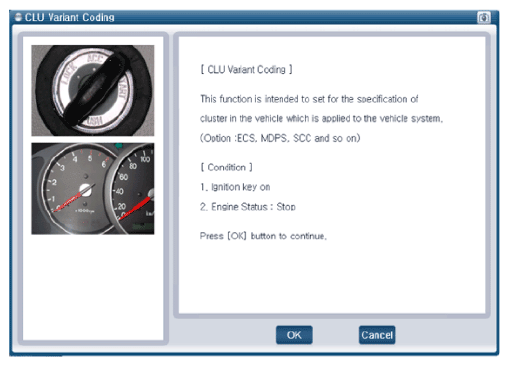

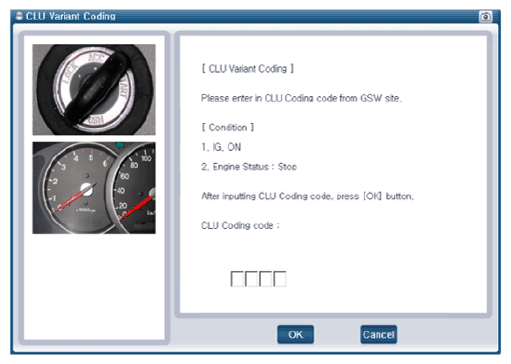

- Select Variant coding mode to perform.

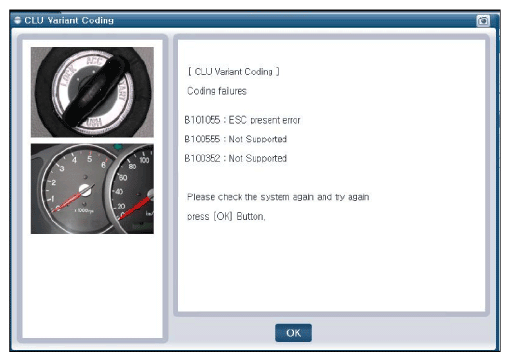

- If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.
