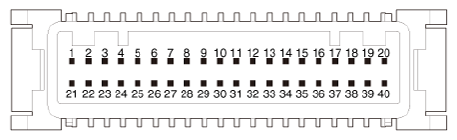

Connector Pin Information
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
| No | Description | No | Description |
|---|---|---|---|
| 1 | GND | 21 | Trip switch (-) |
| 2 | Illumination (-) | 22 | Trip switch 1 (+) |
| 3 | Rheostat switch (Down)_Input | 23 | Trip switch 2 (+) |
| 4 | Rheostat switch (Up)_Input | 24 | MT ("N" Position) |
| 5 | Dentent | 25 | Driver mode switch_Input (AT only) |
| 6 | AT ("P" Position) | 26 | - |
| 7 | AT ("R" Position) | 27 | - |
| 8 | AT ("N" Position) | 28 | Washer level low signal |
| 9 | AT ("D" Position) | 29 | Multimedia-CAN (Low) |
| 10 | AT ("S" Position) | 30 | Multimedia-CAN (High) |
| 11 | Immobilizer_Input | 31 | - |
| 12 | Vehicle speed_Input | 32 | Chassis-CAN (High) |
| 13 | Alternator_Input | 33 | Chassis-CAN (Low) |
| 14 | Fuel sender (+)_Input | 34 | - |
| 15 | - | 35 | - |
| 16 | Fuel sender (-)_Input | 36 | - |
| 17 | Water Separator_Input | 37 | GND |
| 18 | Air Bag (+)_Input | 38 | - |
| 19 | Oil press switch_Input | 39 | IGN 1 |
| 20 | - | 40 | Battery (+) |
