Terminal Function

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

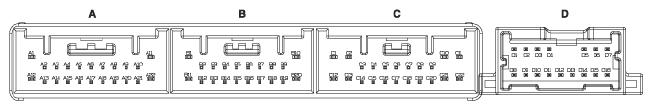

G12602365Courtesy of HYUNDAI MOTOR AMERICA
Pin Function
C22 Ignition 2_Heated handle power
C11 Heated handle
A21 NTC (-)
B15 NTC (+)
D10 Heated handle IND.
