Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Once the rear pillar trim is removed, be sure to replace the clips with new ones.
- Remove the luggage side trim.
(Refer to Interior Trim - "LUGGAGE SIDE TRIM ")

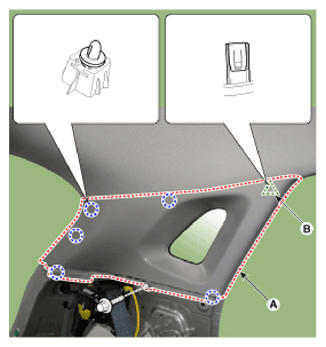

- After loosening the mounting bolts, remove the rear pillar trim (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Once the front pillar trim is removed, be sure to replace the clip (B) with new ones.
