Center Pillar Lower Trim

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Carefully remove the front door body side weatherstrip.
  2. Carefully remove the rear door body side weatherstrip.
  3. Remove the front door scuff trim.

    (Refer to Interior Trim - "DOOR SCUFF TRIM ")

  4. Remove the rear door scuff trim.

    (Refer to Interior Trim - "DOOR SCUFF TRIM ")

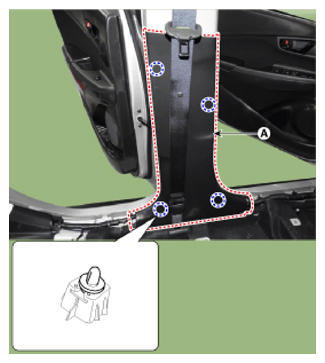

  5. Using a screwdriver or remover, remove the center pillar lower trim (A).
    G12603173Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
