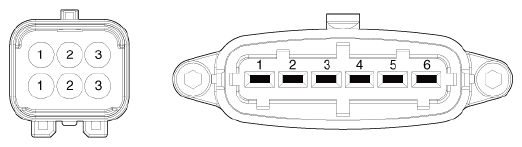

Terminal Function

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HYUNDAI MOTOR AMERICA

Terminal	Description	Wire Color
1	Ground	Black
2	Can High	White
3	Can Low	Yellow
4	Vacuum sensor	Pink
5	IGN 1	Blue
6	Battery (+)	Blue
