Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the rear wheel and tire (A) from the rear hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
Courtesy of HYUNDAI MOTOR AMERICA
Remove the parking brake cable fixing clip (A).

Courtesy of HYUNDAI MOTOR AMERICA
Pull the operation lever as a counter-clockwise direction and then parking cable (A) from the caliper.

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the guide rod bolts and then remove the caliper body (A).
Tightening Torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the pad return spring (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Pad return springs must be replaced with new ones whenever pads are replaced.
- Technicians should be careful not to deform pad return springs.
- When pad return springs are deformed, it may cause improper braking, more fuel consumption.
Remove the brake pad (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the pad retainer (A).

Courtesy of HYUNDAI MOTOR AMERICA

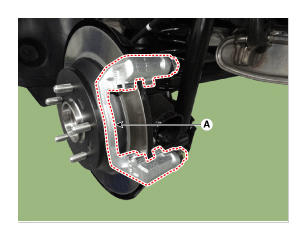

Loosen the caliper mounting bolts and then remove the caliper carrier (A).
Tightening Torque:

63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the screw and then remove the brake disc (A).
Tightening Torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
