Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Lift the vehicle.

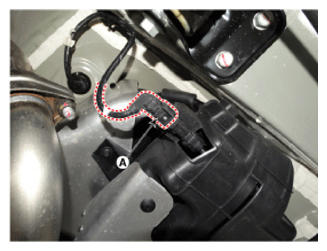

- Disconnect the canister close valve (CCV) connector (A).

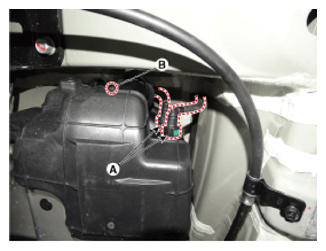

- Disconnect the vapor hose quick-connector (A).
- Disconnect the ventilation hose quick-connector (B).

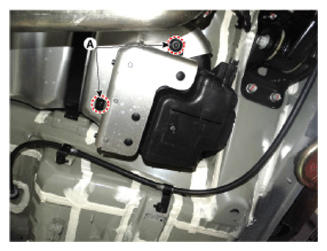

- Remove the canister assembly after loosening bolts (A).
- Remove the canister protector (A) after loosening bolt & clips.
- Remove the canister cover (A) after loosening bolt & clips.
- Remove the clip, and then separate the fuel tank air filter (B) from the canister after rotating it in the direction of the arrow in the image below.
