Air Cleaner Element Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

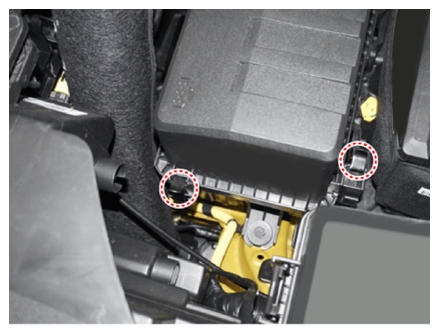

Open the air cleaner element cover by unlocking the clamp.

Courtesy of KIA MOTORS AMERICA, INC.

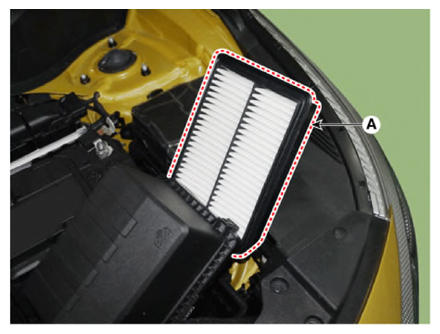

Replace the air cleaner element (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.

Close the air cleaner cover by hooking the clamps.

NOTE: Insert the hinge (A) and engage the clamp when mounting the air cleaner cover.

Courtesy of KIA MOTORS AMERICA, INC.
