Air Cleaner Assembly
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal.

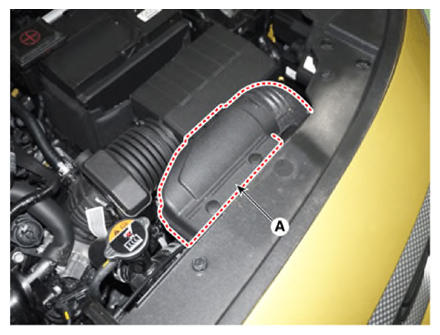

- Remove the air duct (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

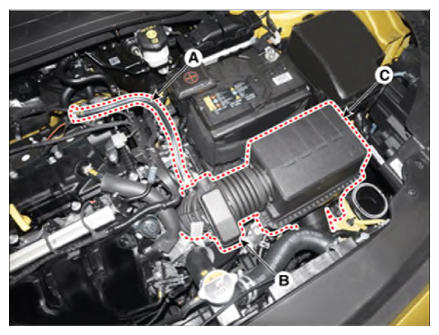

- Remove the air cleaner assembly.
- Disconnect the breather hose (A).
- Disconnect the air intake hose (B).
Tightening torque:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)
- Remove the air cleaner assembly (C).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.0 lb.in)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
