Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

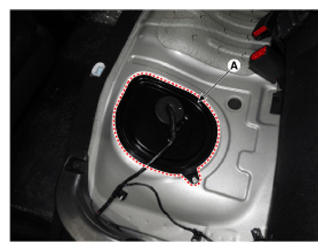

  3. Remove the fuel pump service cover (A).
    G12596735Courtesy of HYUNDAI MOTOR AMERICA

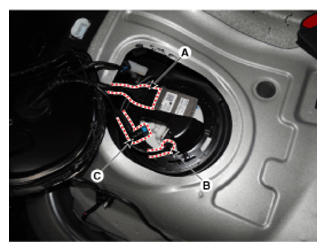

  4. Disconnect the fuel pump control module connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick-connector (C).
    G12596736Courtesy of HYUNDAI MOTOR AMERICA
  7. Lift the vehicle.
  8. Remove the center Muffler Assembly.

    (Engine Mechanical System - "MUFFLER ")

  9. Remove the Propeller Shaft Assembly. [With 4WD vehicle]

    (Refer to Driveshaft and axle - "PROPELLER SHAFT ")

  10. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

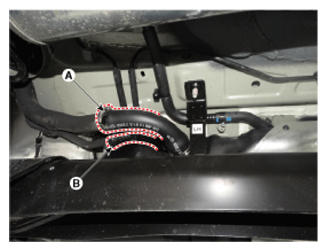

  11. Disconnect the fuel filler hose (A).
  12. Disconnect the ventilation tube (B).
    G12596737Courtesy of HYUNDAI MOTOR AMERICA

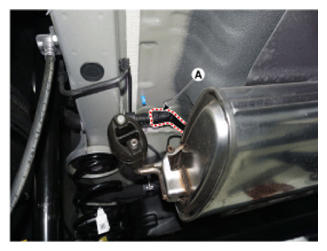

  13. Disconnect the leveling hose quick connector (C).
    G12596738Courtesy of HYUNDAI MOTOR AMERICA

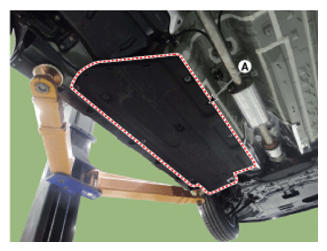

  14. Remove the side under cover (A).
    G12596739Courtesy of HYUNDAI MOTOR AMERICA
  15. Support the fuel tank with a jack.

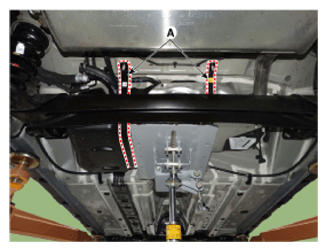

  16. Remove the fuel tank from the vehicle after removing the fuel tank band nuts (A).
    G12596740Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
