Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

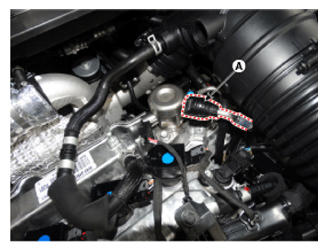

  3. Disconnect the fuel feed tube quick-connector (A).
    G12596789Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Open the clamp cover (B) before disconnecting the quick connector (if the clip is applied).
      G12596790Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When removing the quick-connector by using a clip removing tool (A), be careful not to damage the plastic clip (B).
    • If the clip is damaged, fuel line leakage may occur due to poor connection.
    G12596791Courtesy of HYUNDAI MOTOR AMERICA

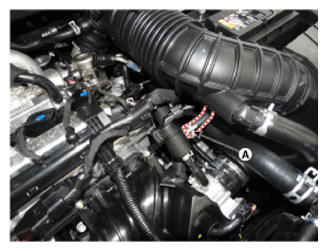

  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G12596792Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

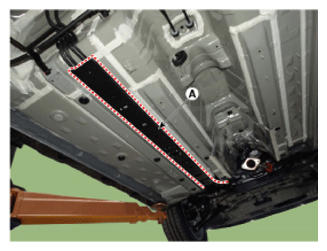

  7. Remove the fuel and brake line protector (A).
    G12596793Courtesy of HYUNDAI MOTOR AMERICA

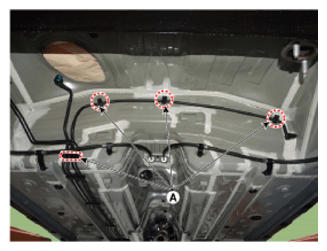

  8. Remove the fuel feed line & vapor tube line fixing clips (A).
    G12596794Courtesy of HYUNDAI MOTOR AMERICA

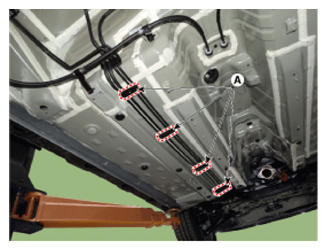

    G12596795Courtesy of HYUNDAI MOTOR AMERICA

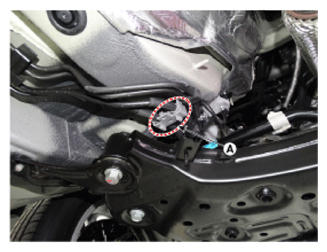

    G12596796Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the fuel line.
    G12596797Courtesy of HYUNDAI MOTOR AMERICA
