Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Open the fuel filler door.

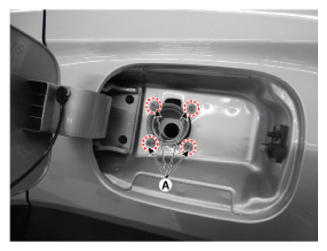

- Remove the filler-neck mounting bolt (A).
- Lift the vehicle.
- Remove the rear-LH wheel, tire, and the inner wheel house.

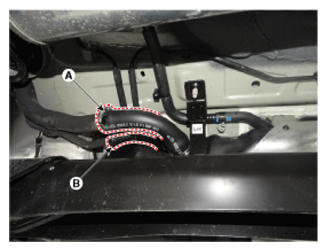

- Disconnect the fuel filler hose (A), the ventilation hose (B).

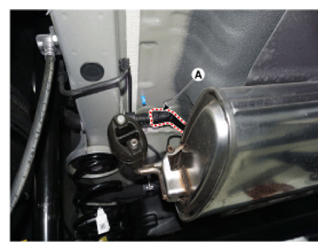

- Disconnect the leveling hose quick-connector (A).

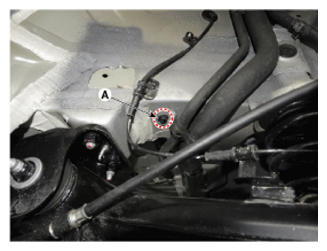

- Remove the filler-neck assembly after loosening the mounting bolt (A).
