Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
    G12596802Courtesy of HYUNDAI MOTOR AMERICA

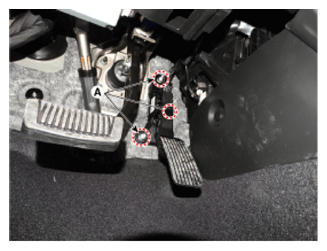

  3. Remove the installation nuts (A) and then remove the accelerator pedal module.
    G12596803Courtesy of HYUNDAI MOTOR AMERICA
