Monitor ScanTool Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS and select "Data Analysis" mode.

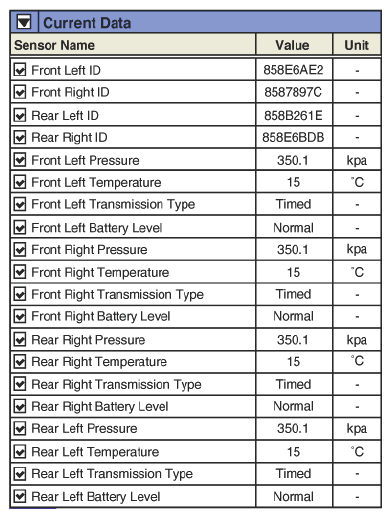

- Monitor data of TPMS Sensor parameter on the "Current Data".
- After driving at 25 km/h (15 mile/h) for approx. 10~20 minutes
- Check that current data is correctly displayed while driving.
Measuring Method: Refer to No. 1 Measurement
Check a sensors value out of sensors information.
- Current data is normally displayed?
YES
- Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Besides C166300, check the internal/external factors which could interfere with DTC, sensor status, and radio signal (RF) in the vehicle.
- Substitute with a known-good TPMS Sensor and check for proper operation.
- If the problem is corrected, replace TPMS Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

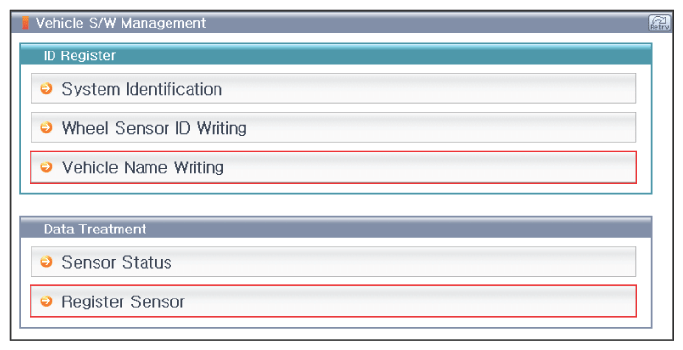

- After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management" mode by using GDS and GDS TPMS. and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Substitute with a known-good. BCM (TPMS Module Integrated) and check for proper operation. If problem is corrected, replace TPMS Module and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After replacing with a known-good. BCM (TPMS Module Integrated), you must do the 'Vehicle Name Writing', 'VIN Writing' and 'Register Sensor' at the "Vehicle S/W Management" mode by using GDS and GDS TPMS.
