Monitoring DTC Status
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Parked & Ignition ON.
- Connect ScanTool and select "DTC Analysis" mode.
- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC INFORMATION & INSPECTION .
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter.
- Is parameter displayed "Present Fault"
YES
- Substitute with a known-good TPMS Sensor and check for proper operation. If problem is corrected, replace Front Right TPMS Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

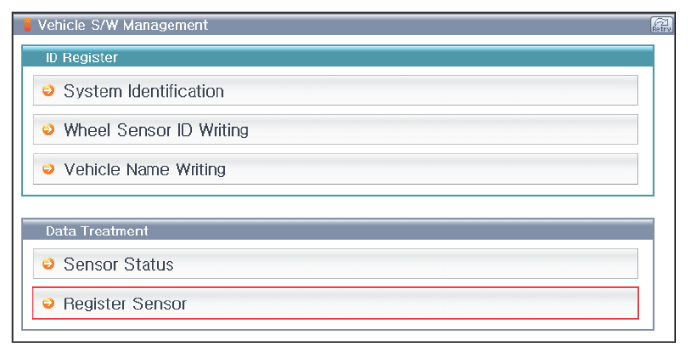

- After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management" mode by using GDS and GDS TPMS. and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- This fault was repaired and TPMS Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
