Monitor ScanTool Data

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Set up 'GDS' with 'GDS TPMS'.
Select "Vehicle S/W Management" function.
Select the "Sensor Status" mode of "Data Treatment" part.
Position the GDS TPMS as near as possible to the tire. (Fig 1)
(Reading may take 30~60 seconds depending on the sensors characteristics.)
Monitor the parameter of "Temperature" on the screen. (Fig 2)
Specification: "Temperature" is Less than 115°C (239°F)

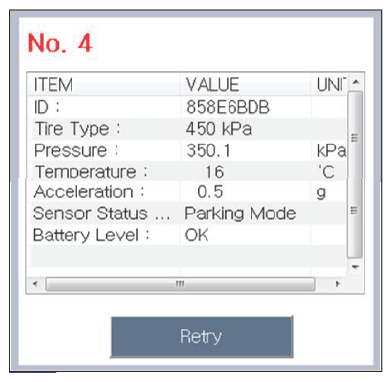

Fig 1: Screen Display - Method Of Checking Sensor ID With GDS TPMS
Courtesy of HYUNDAI MOTOR AMERICA

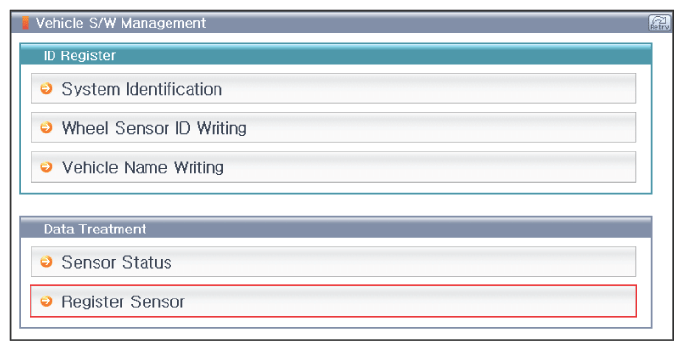

Fig 2: Screen Display - GDS TPMS (Exciter)
Courtesy of HYUNDAI MOTOR AMERICA
Is parameter within specifications?
YES
- Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Due to damaged tires, driving of lower pressure tires, and the excessive actuation of brake. these may cause a temporary fault code.
- First check the pressure of tires and the status of tires, second repair tires or replace with known-good tires as necessary, finally go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Substitute with a known-good TPMS Sensor and check for proper operation.
- If the problem is corrected, replace Rear Right TPMS Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management" mode by using GDS and GDS TPMS. and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Courtesy of HYUNDAI MOTOR AMERICA
