Monitor ScanTool Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS and select "Data Analysis" mode.

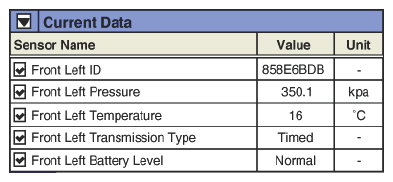

- Monitor data of TPMS Sensor parameter on the "Current Data".
- After driving at 35 Km/h (22 Mile/h). for approx. 10~20 minutes
- Check that current data is correctly displayed while driving.
Measuring Method: Refer to No. 1 Measurement
Check a sensors value out of sensors information.
- Park the vehicle on an even ground.
- IG "ON".
- Set up 'GDS' with 'GDS TPMS'.

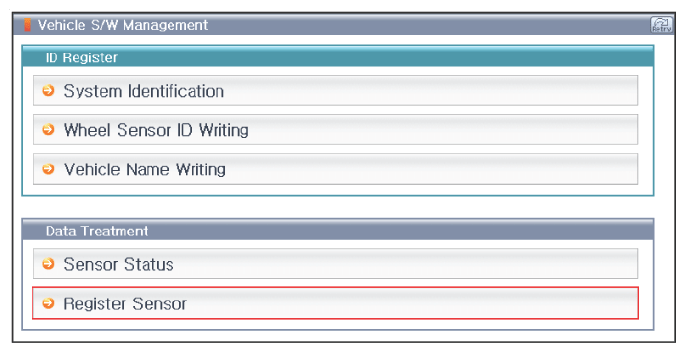

- Select "Vehicle S/W Management" function.
- Select the "Sensor Status" mode of "Data Treatment" part.

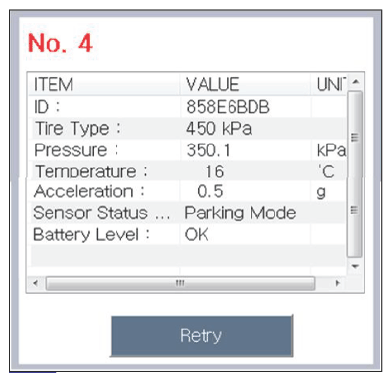

- Position the GDS TPMS as near as possible to the tire.
(Reading may take 30~60 seconds depending on the sensors characteristics.)
- Check a sensors value out of sensors information.
Measuring Method: Refer to No. 2 Measurement
Check a sensors value out of sensors information.
- Is the Fig.1's sensor value same with the Fig.2's?
YES
- Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- □This DTC may be caused by installing other electric devices in the car, except for a genuine part.
- Find and erase an inside element which can interfere with wireless signals, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- If TPMS Sensor ID is abnormal, register ID and then confirm the sensor ID status.
- If the pressure of sensor is abnormal, compare values measured by the pressure gauge to the values from GDS.
- Check the factors which interfere with a radio signal (RF) of the TPMS sensor.
- □Substitute with a known-good TPMS Sensor and check for proper operation.
- If the problem is corrected, replace Rear Right TPMS Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management" mode by using GDS and GDS TPMS. and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
