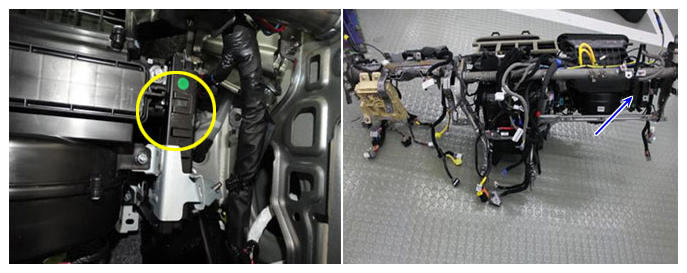

BCM (TPMS Module Integrated)

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G12600502Courtesy of HYUNDAI MOTOR AMERICA

The TPMS is the acronym for Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS Module (TPMS ECU or TPMS Receiver) makes the warning lamp turn on for notifying the driver. This system consists of TPMS Module and TPMS sensors. Among components of TPMS system
