Section 16 (Charging System - 2.0L)
>>
DC-DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

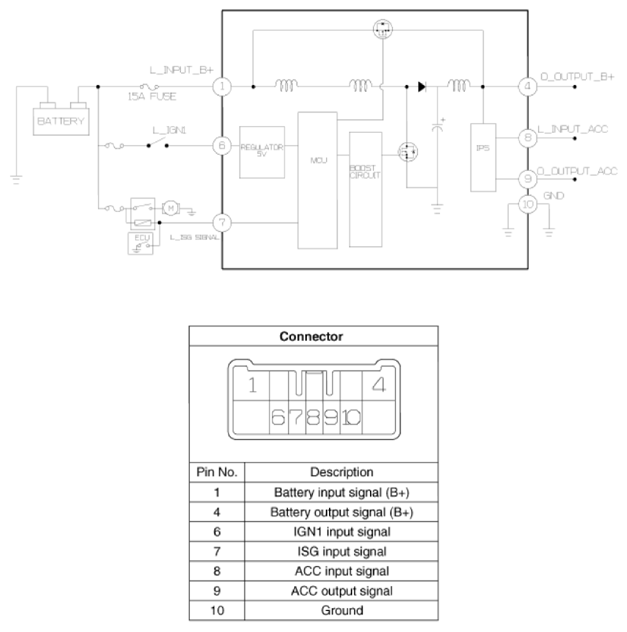

[200W]
Courtesy of KIA MOTORS AMERICA, INC.

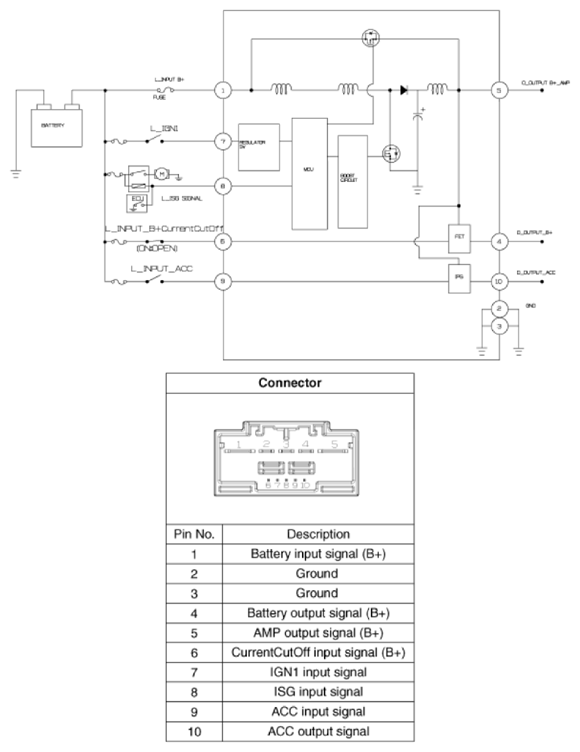

[450W]
Courtesy of KIA MOTORS AMERICA, INC.
