Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

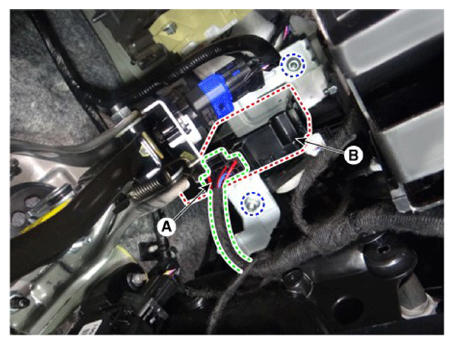

  3. Remove the DC/DC converter (B) after disconnecting the DC/DC converter connector (A).
    G13482877Courtesy of KIA MOTORS AMERICA, INC.
