Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

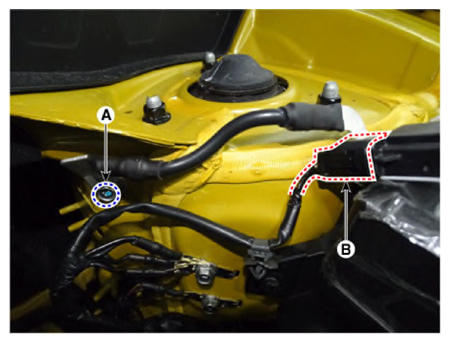

- Loosen the mounting bolt (A) after disconnecting the battery sensor connector (B).
Tightening torque
:
26.4 - 32.3 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.8 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
