Section 16 (Charging System - 2.0L): Alternator: Specifications: Specification
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Specification |
| Rated voltage |
13.5V, 150A |
| Speed in use |
1, 000 - 18, 000 rpm |
| Voltage regulator |
IC Regulator built-in type |
| Regulator Setting Voltage |
External mode |

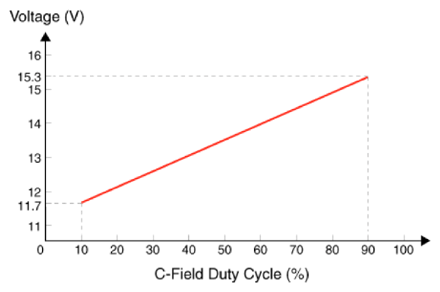

Refer to below graph |
| Internal mode |
14.55 ± 0.3V |
| Temperature Gradient |
External mode |
0 ± 3 mV/°C |
| Internal mode |
-3.5 ± 2 mV/°C |
 Courtesy of KIA MOTORS AMERICA, INC.
|
