Component Location: BCM

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

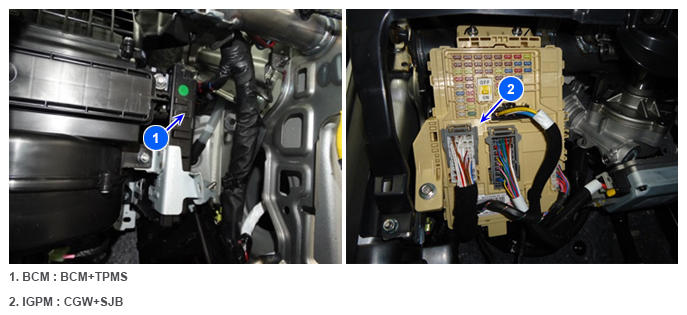

BCM

Courtesy of HYUNDAI MOTOR AMERICA

BCM* is responsible for monitoring and controlling body electrical systems. It controls output of time or alarm related function with switch signals from switch and switch signals from SJB* via B-CAN communication.

BCM* uses B-CAN (Body CAN) for optimizing wires and communicates with other units to receive required data and transmit data to other units.

NOTE:

BCM* (Body Control Module): "BCM"

TPMS (Tire Pressure Monitoring System): "BCM"

IGPM (Integrated Gateway & Power control Module): "IGPM"

CGW (Central GateWay): "IGPM_GATE WAY"

SJB (Smart Junction Block): "IGPM_IPS CONTROL MODULE"
