Component Location: HUD

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

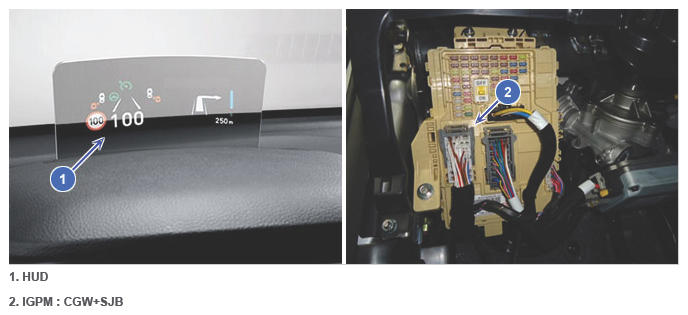

Fig 1: HUD Components

Courtesy of HYUNDAI MOTOR AMERICA

HUD* is a safety & convenience device that the driver can see information much faster, without having to take eyes off the road.

HUD* receives C-CAN* and B-CAN* information from the vehicle systems. It displays directly the informations on the driver windshield.

NOTE:

HUD* (Head Up Display): "HUD UP DISPLAY"

IGPM (Integrated Gateway & Power control Module, "GATE WAY"+"IPS CONTROL MODULE"): "IGPM"

CGW (Central GateWay): "IGPM_GATE WAY"

SJB (Smart Junction Block): ""IGPM_IPS CONTROL MODULE"
