Monitor DTC Status
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Plug GDS to Data Link Connector (DLC).
- Turn "ON" the ignition switch.
- Select "Diagnostic Trouble Codes (DTC)," and click "DTC Status" to check DTC information.
- Read the "DTC State" parameter.
- Is the DTC State "Present?"
"PRESENT"

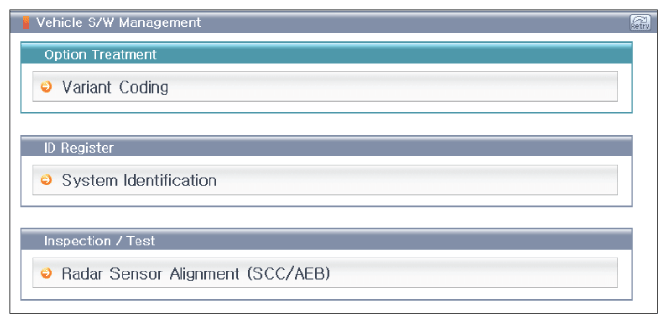

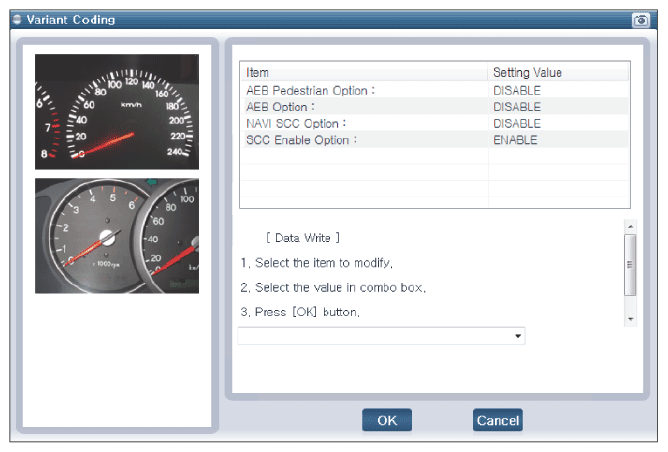

- Perform "Variant Coding" and "Radar Sensor Alignment" at the "Vehicle S/W Management" mode by using GDS. Then, go to "VERIFICATION OF VEHICLE REPAIR ".
