GDS Data Analysis

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS and select "DTC Analysis" mode
Start the engine.

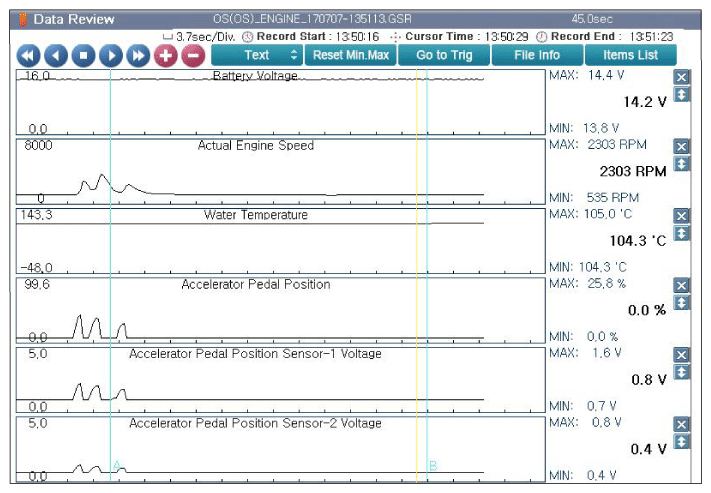

Monitor the parameters related to DTC on the "Current Data" menu of the GDS below while press and depress gas pedal.

Courtesy of HYUNDAI MOTOR AMERICA

Data Analysis

Condition		GDS Sensor Data
Condition		APS 1	APS 2
Ignition switch is turned ON without engine running	Output voltages of APS 1 and APS 2 are in proportion to accelerating. APS 2 output voltage is half of APS 1 output voltage.
	Release a pedal fully	0.58~0.93V	0.29~0.47
	Depress a pedal fully	3.85~4.35V	1.93~2.18V

Is data in accordance with "Data Analysis"?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace the relevant component (s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next step below.
