HO2S Inspection
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Visually/physically inspect the HO2S for the following conditions:
- Ensure that the HO2S is securely installed. (Pigtail and wiring harness not making contact with the exhaust pipe)
- Check for corrosion on terminals and terminal tension (at the HO2S and at the PCM)
- Front HO2S for silicon contamination. This contamination will be indicated by a white powdery coating on the portion of the sensor exposed to the exhaust stream and this will result in a but false (high) voltage signal
- Fuel, engine coolant or oil contamination
- Use of improper sealant
- If contamination is evident on the HO2S, Fix the source of the sensor contamination before replacing the sensor to prevent future contamination. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Warm up the engine to normal operating temperature and let it idle.
- Connect GDS and monitor the "O2 SNSR VOL.-B1/S1" and "O2 SNSR VOL.-B1/S2" parameters on the GDS data list.

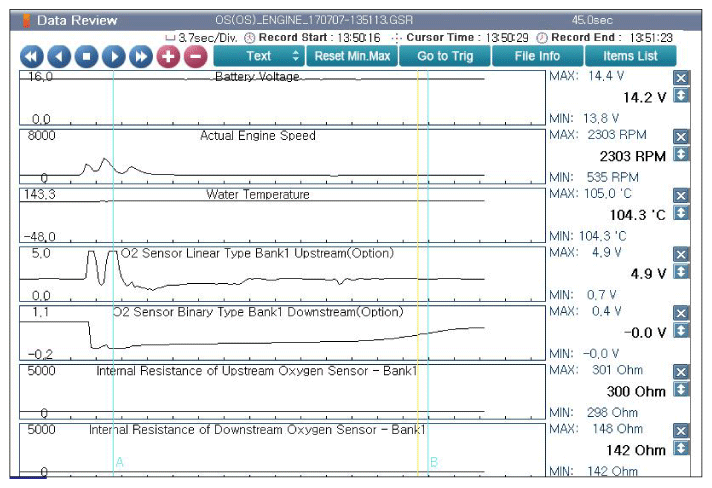

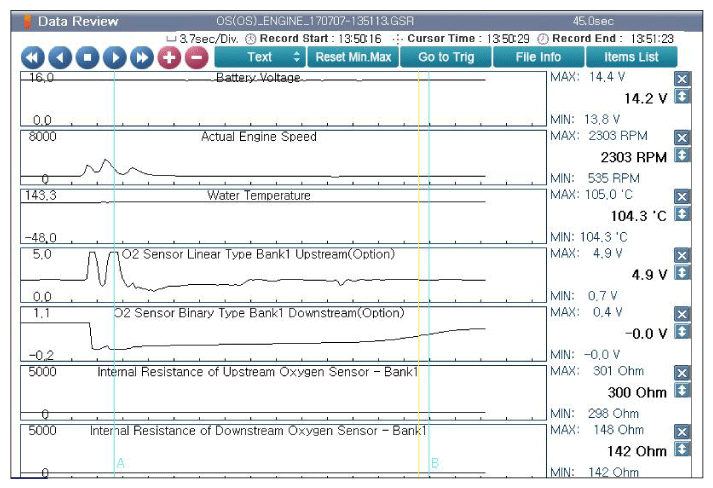

Specification: Refer to below figure.
- Was a problem found in any of the above areas?
YES
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
