TPS Check
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch "ON".

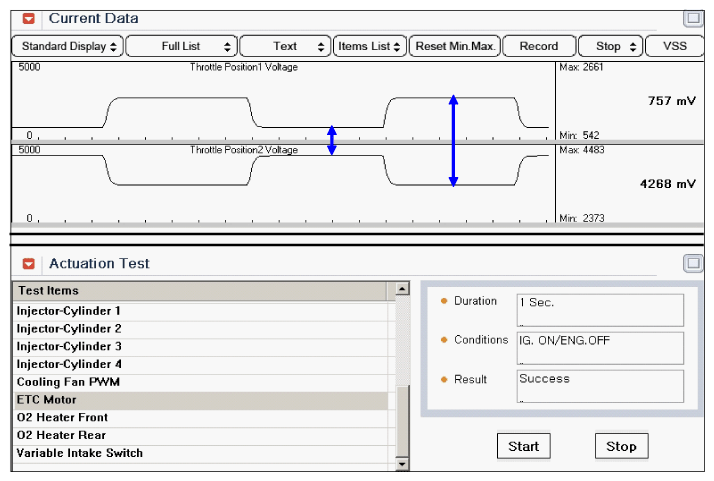

- Select 'Actuation Test' mode and execute 'ETC Motor' part.
Specification
- Is the waveform normal?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Check ETC for contamination, deterioration, or damage. Substitute with a known-good ETC and check for proper operation. If the problem is corrected, replace TPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: It is necessary to perform the TPS adaptation procedure after the ETC assembly or PCM replacing.
■ TPS adaptation procedure
Turn the ignition switch "OFF" and then "ON" without cranking. Wait for 10 seconds under prerequisite condition. → prerequisite condition: Battery voltage>10V, Intake air temperature>5.3° (41.5°F), 5.3° (41.5°F)
