Timing Inspection
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Set up an oscilloscope as follows:
- Channel A (+): Signal terminal of the CMPS #1 (back probe), (-): ground
- Channel B (+): Signal terminal of the CKPS (back probe), (-): ground

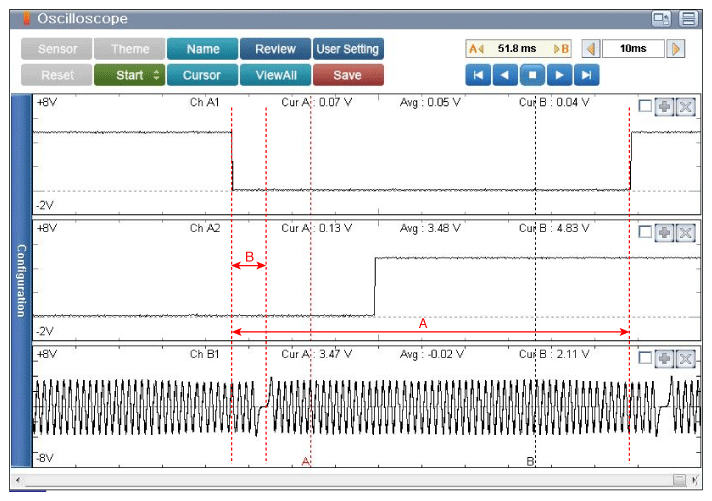

- Start the engine and check for signal waveform compared with reference waveform below.
- Is the signal waveform normal?
YES
- Go to next step below
NO
- Repair or readjust as necessary, if air gap of the CKPS is exceeds specification [0.3~1.7 mm (0.012~0.067 in)]. If it is okay, check that the crankshaft and camshaft are correctly aligned the matching marks of the pulleys. Repair or readjust as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
