Check TPS
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch "ON"

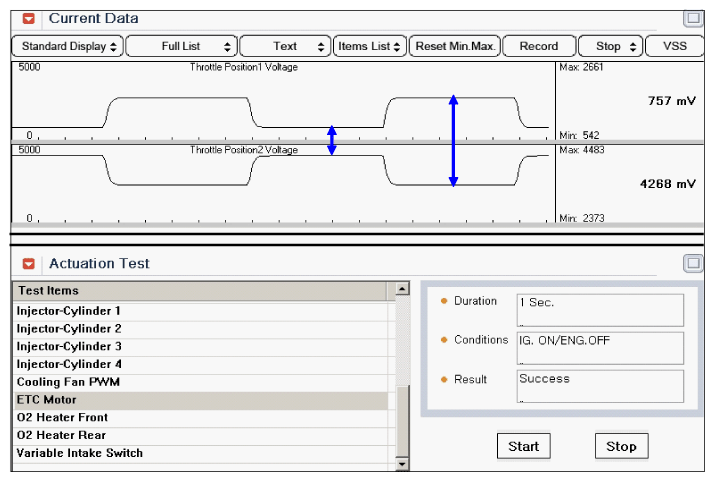

- Select "Actuation Test" mode and execute 'ETC motor' part.
Specification :
- Is the waveform normal?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Check ETC for contamination, deterioration, or damage. Substitute with a known-good ETC and check for proper operation. If the problem is corrected, replace TPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: It is necessary to perform the TPS adaptation procedure after the ETC assembly or PCM replacing.
■ TPS Adaptation Procedure
Ignition "OFF" and then "ON" without cranking. Wait for 10 seconds under Prerequisite Condition (enable conditions).
→ Prerequisite Condition (Enable Conditions): Battery >10V & Intake Air Temp. > 5.3° (41.5°F) & 5.3° (41.5°F) < Engine Coolant Temp. < 99.8° (211.6°F)
