GDS Data Analysis
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS and select "DTC Analysis" mode
- Warm up the engine.

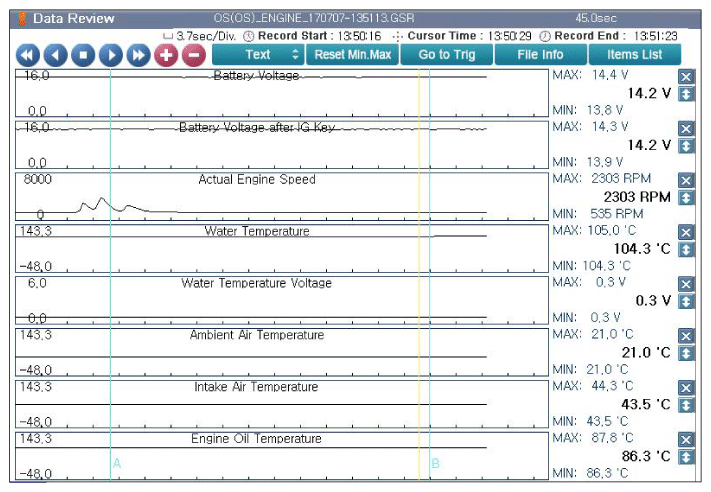

- Monitor the parameters related to DTC on the "Current Data" menu of the GDS Below while press and depress gas pedal.
- Is parameter displayed within specifications?
YES
- This can be an intermittent fault caused by poor contact of the sensor and/or PCM connector. Or, PCM memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace the relevant component (s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next step.
