Component Inspection

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS and select "DTC Analysis" mode
Warm up the engine.

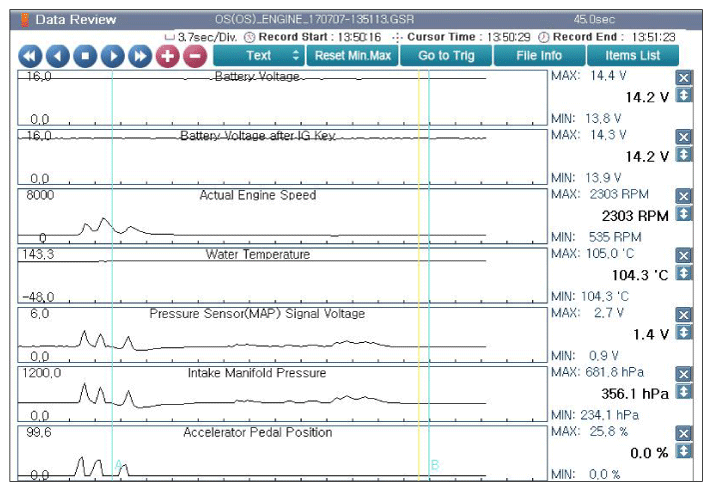

Monitor the parameters related to DTC on the "Current Data" menu of the GDS Below while press and depress gas pedal.

Courtesy of HYUNDAI MOTOR AMERICA
Is parameter displayed within specifications?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good MAP Sensor and check for proper operation. If the problem is corrected, replace MAP Sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
