GDS Data Analysis
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect KDS/GDS to Data Link Connector (DLC).
- Warm up the engine to normal operating temperature.

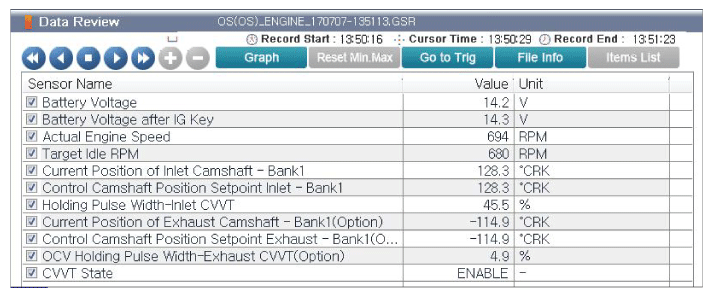

- Check the "Current Data" about related DTC with GDS below.
- Are the parameters displayed correctly?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Repair " procedure.
NO
- Go to next step.
