Monitor GDS Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect a GDS to DLC (Data Link Cable).
- Start the engine and warm it up to the normal operation temperature.

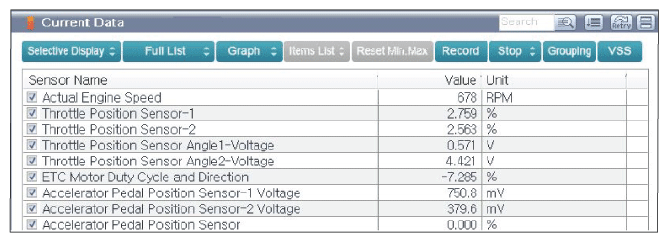

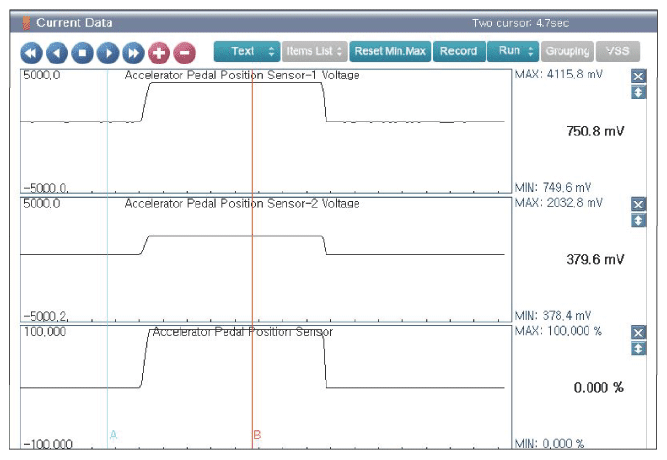

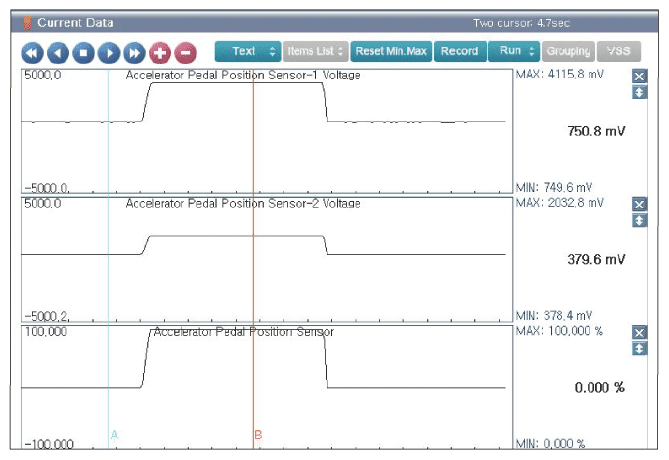

- Check the parts related to an APS (Accelerator Position Sensor) 1 and 2 on "Current Data" using the GDS.
- Does the actuation work properly? Is the sensor output normal?
Specification
YES
- Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next procedure.
