Signal Waveform & Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|

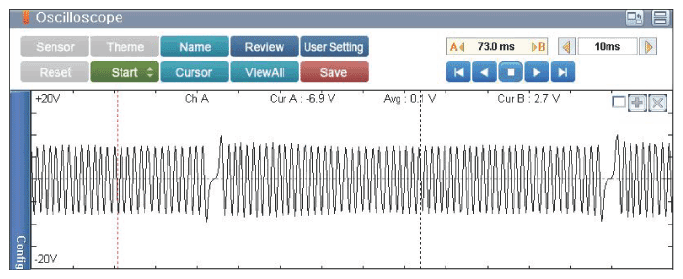

This example displays a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle. The ECM controls the injection and ignition timing by using these signals.
