Signal Waveform & Data

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

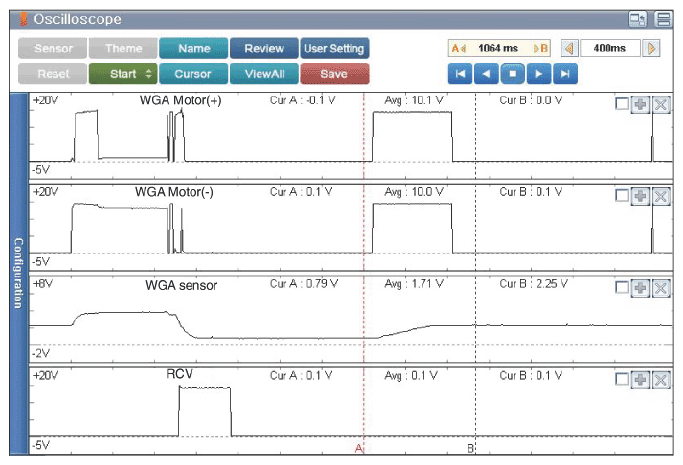

G12600388Courtesy of HYUNDAI MOTOR AMERICA

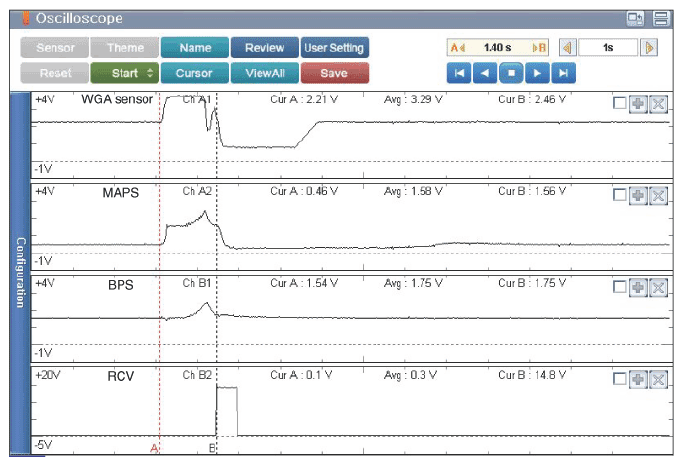

G12600389Courtesy of HYUNDAI MOTOR AMERICA
